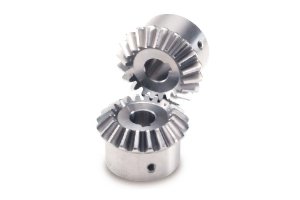

Buy SUMA4-25 Finished Bore Stainless Steel Miter Gear | Miter Gears

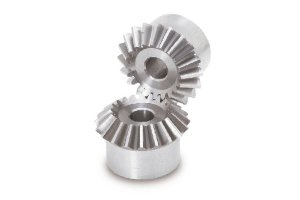

Module 4 | 25 Teeth
| Price (0-9) | £289.32 each |
| Price (10+) | £261.25 each |
| Typically available 10-14 days from order, subject to manufacturer's stock availability. (Please contact us for precise availability, if required) | |
| Finished Bore Stainless Steel Miter Gears Specification | |
|---|---|
| Precision Grade | JIS B 1704: 1978 grade 3 |
| Gear Teeth | Gleason |
| Pressure Angle | 20° |
| Material | SUS303 |
| Heat Treatment | — |
| Tooth Hardness | (less than 187HB) |
Primary information
| Product No. SUMA4-25 | |||
|---|---|---|---|
| Module | 4 | Number Of Teeth | 25 |
| Shape | BK | Bore (A) | 30mm |
| Hub Diameter (B) | 80mm | Pitch Diameter (C) | 100mm |
| Outside Diameter (D) | 105.66mm | Mounting Distance (E) | 80mm |
| Total Length (F) | 49.32mm | Crown To Back Length (G) | 32.83mm |
| Hub Width (H) | 20mm | Length Of Bore (I) | 43mm |
| Face Width (J) | 25mm | Holding Surface Diameter (K) | 55.29mm |
| Allowable Torque Bending Strength Kgf | 5.43 | Allowable Torque Surface Durability Kgf | 0.9 |
| Allowable Torque Surface Durability N | 8.79 | Allowable Torque Bending Strength N | 53.22 |
| Backlash Up | 0.27mm | Backlash Low | 0.12mm |
| Tap Size | M6 | Key Groove Depth | 3.3 |
| Key Groove Width | 8 | Number Of Tap | 1 |
| Partner Name | SUMA4-25 | Series Code | 131 |
Secondary information
| Cone Distance | 70.71mm | Back Diameter | 0mm |
|---|---|---|---|
| Inside End Teeth Diameter | 67.92mm | Face Angle | 48.85° |
| Pitch Cone Angle | 45° | Teeth Bottom Cone Angle | 41.15° |
| Position Of Tap M | 10 | Tap M | 10 |
| Price (0-9) | £289.32 each |
| Price (10+) | £261.25 each |
| Typically available 10-14 days from order, subject to manufacturer's stock availability. (Please contact us for precise availability, if required) | |
