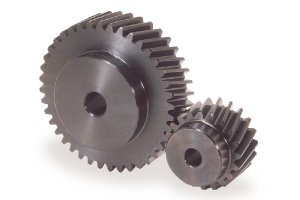

Buy SH3-30L Steel Helical Gear | Spur Gears
Module 3 | 30 Teeth
| Price (0-9) | £78.76 each |
| Price (10+) | £71.12 each |
| Typically available 10-14 days from order, subject to manufacturer's stock availability. (Please contact us for precise availability, if required) | |
| Steel Helical Gears Specification | |
|---|---|
| Precision Grade | JIS Grade N8 |
| Reference Section of Gear | Normal Plane |
| Gear Teeth | Standard full depth |
| Pressure Angle | 20 |
| Helix Angle | 15 |
| Material | S45C |
| Heat Treatment | - |
Primary information
| Product No. SH3-30L | |||
|---|---|---|---|
| Module | 3 | Number Of Teeth | 30 |
| Shape | S1 | Bore (A) | 20mm |
| Hub Diameter (B) | 70mm | Pitch Diameter (C) | 93.17mm |
| Outside Diameter (D) | 99.17mm | Face Width (E) | 35mm |
| Hub Width (F) | 15mm | Total Length (G) | 50mm |
| Backlash Low | 0.18mm | Backlash Up | 0.38mm |
Secondary information
| Hand Of Thread | L | Allowable Torque Bending Strength Kgf | 37.5 |
|---|---|---|---|
| Allowable Torque Surface Durability Kgf | 5.12 | Allowable Torque Bending Strength N | 368 |
| Allowable Torque Surface Durability N | 50.2 | Helix Angle | 15 |
| Price (0-9) | £78.76 each |
| Price (10+) | £71.12 each |
| Typically available 10-14 days from order, subject to manufacturer's stock availability. (Please contact us for precise availability, if required) | |
