Buy Steel Ring Gears (Spur Gears) | Spur Gears

Searching thousands of gears for your results...

Steel Ring Gears (Spur Gears) Product Filter

6 Steel Ring Gears (Spur Gears) found

Nominal Module

--Select-- 2 2.5 3

Teeth

--Select-- 120 160 200

Hub Diameter

--Select--

Hand of thread

--Select--

Choose subcategory

--Select-- Acetal F-Loc Hub Spur Gears Brass Spur Gears Ground Helical Gears Ground Spur Gears Ground Spur Pinion Shafts Injection Moulded Spur Gears Plastic Spur Gears Plastic Spur Gears with Stainless Steel Cores Plastic Spur Gears with Steel Cores Sintered Metal Bushings Sintered Metal Spur Gears Spur Gears with Built-In Clamps Spur Pinion Shafts Stainless Steel F-Loc Hub Spur Gears Stainless Steel Hubs Stainless Steel Spur Gears Steel Helical Gears Steel Hubless Spur Gears Steel Hubless Thin Face Spur Gears Steel Internal Gears Steel Ring Gears Steel Ring Gears (Spur Gears) Steel Spur Gears Steel Thin Face Spur Gears

Reset filters

View all 6 results

Order before 1pm for next day delivery* Add selected to basket Checkout

Gear Range

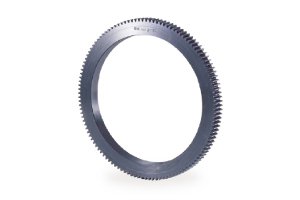

Select Product	Select product: SSR2-120	Select product: SSR2-200	Select product: SSR2.5-120	Select product: SSR2.5-200	Select product: SSR3-120	Select product: SSR3-160
Product No.	SSR2-120	SSR2-200	SSR2.5-120	SSR2.5-200	SSR3-120	SSR3-160
View product page	View	View	View	View	View	View
Unit Price (0-9 units)	£310.18 each	£576.14 each	£462.71 each	£1,088.78 each	£768.90 each	£1,074.76 each
Unit Price (10+ units)	£280.08 each	£520.23 each	£417.80 each	£983.11 each	£694.28 each	£970.46 each
Availability	10-14 days from order placement*	10-14 days from order placement*	10-14 days from order placement*	10-14 days from order placement*	10-14 days from order placement*	10-14 days from order placement*
Image (if available)
Drawing
Module	2	2	2.5	2.5	3	3
Number Of Teeth	120	200	120	200	120	160
Shape	S5	S5	S5	S5	S5	S5
Bore (A)	194mm	354mm	245mm	445mm	296mm	416mm
Pitch Diameter (C)	240mm	400mm	300mm	500mm	360mm	480mm
Outside Diameter (D)	244mm	404mm	305mm	505mm	366mm	486mm
Face Width (E)	20mm	20mm	25mm	25mm	30mm	30mm
Series Code	18	18	18	18	18	18
Backlash Low	0.17mm	0.2mm	0.19mm	0.22mm	0.22mm	0.22mm
Backlash Up	0.37mm	0.41mm	0.41mm	0.46mm	0.45mm	0.45mm

*Typically available 10-14 days from order, subject to manufacturer's stock availability. (Please contact us for precise availability, if required)

Browse our Steel Ring Gears (Spur Gears)

RAR Gears supplies a large range of Steel Ring Gears (Spur Gears) to the UK and Europe from stock. Use our online gear catalogue to browse through and buy online from thousands of gears of all types including Steel Ring Gears (Spur Gears). For more information please contact us to talk to one of our gear experts.
